SZ CONNECTOR SERIES
CONDUCTIVE RUBBER TYPE: SZ CONNECTOR SERIES

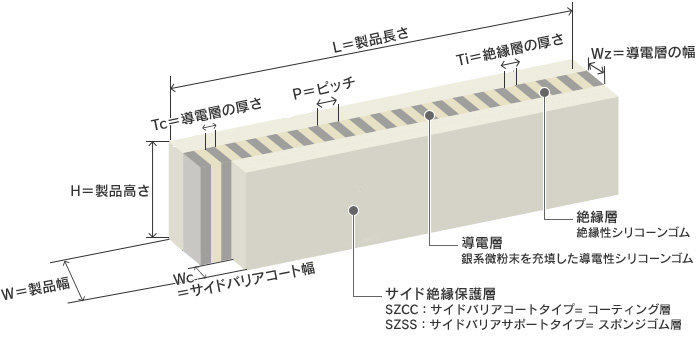

Dimensional specifications
| S-Z BARRIER TYPE | S-Z SUPPORT TYPE | |
| Pitch [P](mm) | 0.100±0.05 | 0.100±0.05 |
| number of conductive layers per 10 mm (bottles) | 66 or more | 66 or more |
| Width of conductive layer [Tc] (mm) | 0.03 or higher | 0.03 or higher |
| Length[L](mm) | 4～120 | 10～120 |
| Width [W](mm) | 0.8?3.0 | 1.5、2.0、2.5、3.0 |
| Height[T](mm) | 1～10 | 1～10 |
| side insulation protection layer (mm) | 0.05+0.05/-0.03 | 0.60±0.08 |
Basic characteristics
characteristic value
|
condition
|
|
CONNECTION RESISTORS (Ω)
|
0.5 or less
|
measurement circuit electrode width: 0.5mm (*2
|
Current Capacity (mA)
|
300
|
measurement circuit electrode width: 0.5mm (*3
|
INSULATION RESISTANCE (MΩ)
|
200 or more
|
Electrode width 0.5mm DC50V applied (*4
|
proper use compression ratio (%)
|
5～25
|
-
|
maximum compression (mm)
|
1.0
|
when the product height is 4 mm or more
|
recommended operating temperature range (°c)
|
-40～+85
|
-
|
NOTE: *MEASUREMENT SAMPLE: S-ZCC (2.0×10.0×2.2) *MEASUREMENT ENVIRONMENT: UNDER NORMAL TEMPERATURE AND HUMIDITY
| SZCC : S-Z Barrier Type Series | SZSS : S-Z Support Type Series |
 |
 |
